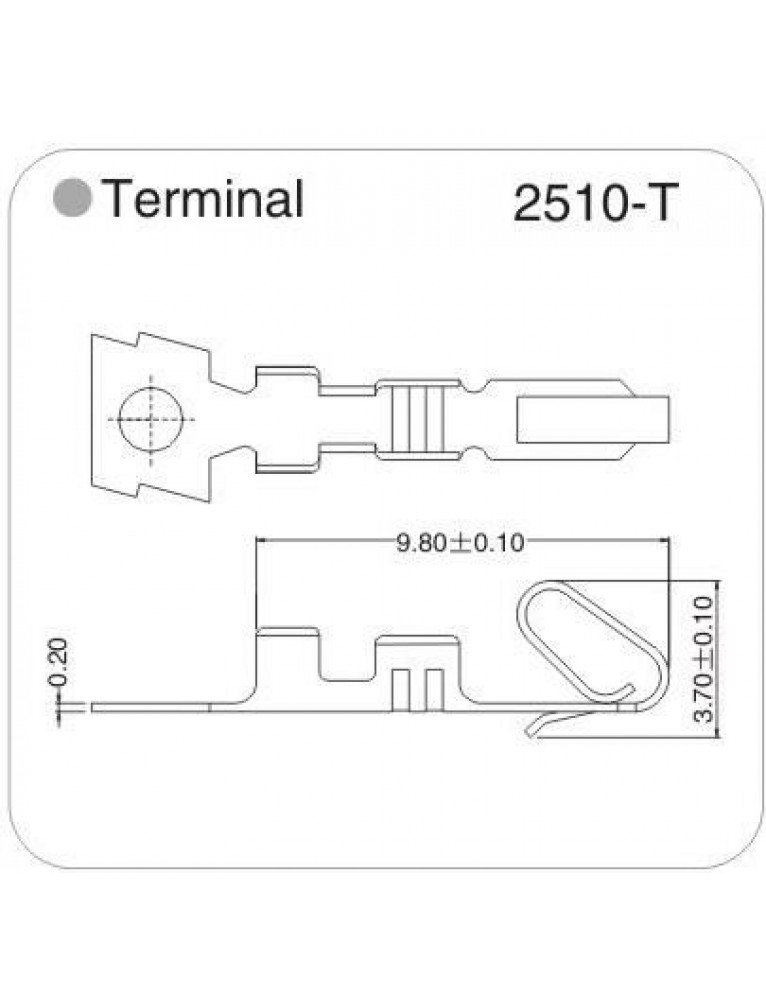

2.54T Konnektör Pimi
1,04 TL
Poles : 2-20
Applicable wires : AWG28#-22#
Applicable Pc board thickness : 1.6mm
Temperature range : 25C - 85C
Voltage rating : 250V.Ac/Dc
Current rating : 3A
Contact resistance : <0.02 ohm
Insulation resistance : >1000 Mohm
Applicable wires : AWG28#-22#
Applicable Pc board thickness : 1.6mm
Temperature range : 25C - 85C
Voltage rating : 250V.Ac/Dc
Current rating : 3A
Contact resistance : <0.02 ohm
Insulation resistance : >1000 Mohm
Withstand voltage : 1000V.Ac/1min
