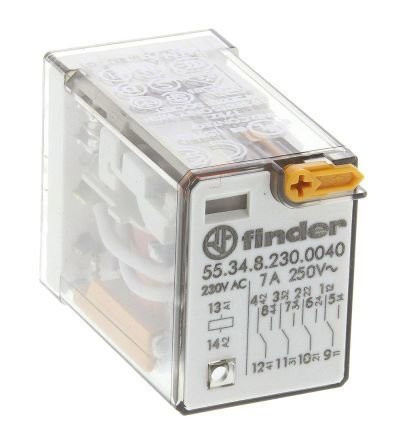

Finder Röle 55348230.0040 / 220V/AC 4 Kontak 14 Pin 7A
704,70 TL
| Coil Voltage | 230 V ac | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 7 A | |
| Terminal Type | Quick Connect | |
| Coil Resistance | 17 kΩ | |
| Maximum Switching Voltage AC | 400V ac | |
| Application | General Purpose | |
| Length | 27.7mm | |
| Depth | 20.7mm | |
| Height | 37.2mm | |
| Dimensions | 27.7 x 20.7 x 42.8mm | |
| CAD Drawing | 3D CAD Model | |
| Maximum Switching Power AC | 1.75 kVA | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C |
