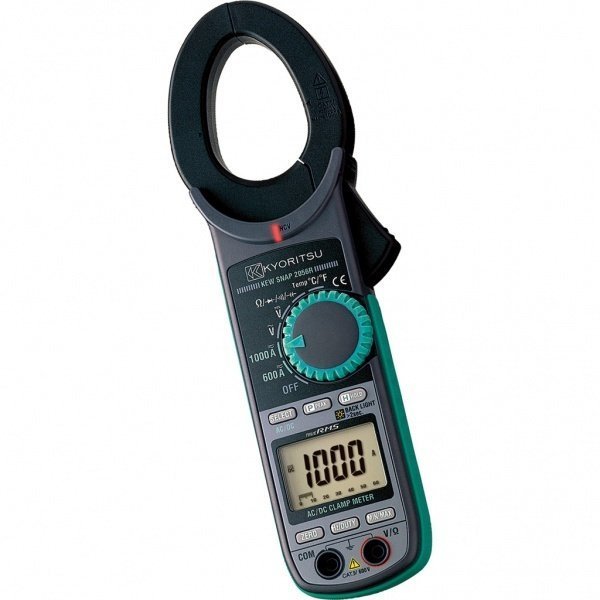

Kyoritsu KEW SNAP 2056R AC/DC 1000A True RMS Pensampermetre
Kategori
Marka
Stok Kodu
04173
Garanti Süresi
24 Ay
Fiyat
423,00 USD + KDV
20.304,00 TL
| AC A (RMS) | 0 - 600.0/1000A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 500Hz) |
|---|---|
| DC A | 0 - 600.0/1000A ±1.5%rdg±5dgt |
| AC V | 6/60/600V Auto Ranging ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 400Hz) |
| DC V | 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt |
| Ω | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Capacitance test | 400n/4µ/40µF(Auto Ranging) |
| Temperature | -50ºC - +300ºC (With the use of Temperature probe 8216) |
| Frequency/DUTY | 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9% |
| Conductor size | Ø40mm |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| Power source | R03 (1.5V) (AAA) × 2 |
| Dimensions | 254(L) × 82(W) × 36(D)mm |
| Weight | 310g |
| Included Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional Accessories | 8216 (Temperature probe) |
